Packaged Units
Our complete line of packaged systems include Packaged Air Conditioners, Packaged Gas Furnaces and Air Conditioners, Packaged Heat Pumps and Packaged Hybrid Heat. These self-contained systems are located outside of the home, mounted on the ground or the roof, and ducted into the home.
Just like individual furnaces, air conditioners and heat pumps, these package units carry SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 ratings. The higher the rating, the more energy efficient the unit is. The Department of Energy’s (DOE) new minimum efficiency standards vary by region, so your choice of package units will depend on where you live.
The DOE’s regional breakdown by state is as follows:
- North
- 14.0 SEER/ 13.4 SEER2
- 8.0 HSPF/6.7 HSPF2
- 80% AFUE
- Southeast
- 15.0 SEER/ 14.3 SEER2
- 8.0 HSPF/6.7 HSPF2
- 90% AFUE
- Southwest
- 15.0 SEER/ 14.3 SEER2
- 8.0 HSPF/6.7 HSPF2
- 90% AFUE
SEER/SEER2 And HSPF/HSPF2
SEER2 is an updated rating standard introduced by the DOE. SEER2 standards are intended to provide a better gauge of typical home operating conditions whereas the older SEER rating utilized very precise protocols to determine ratings in ideal conditions. SEER2 standards include updated testing means that give a better indication of how a unit will operate in the real world.
HSPF2 is the newest type of rating system that expands on the basic HSPF scale.
Much like miles-per-gallon for a car, SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 offer an easy way to compare efficiencies of different products – the higher the rating, the more efficient the unit. Just be sure you are comparing either SEER vs SEER or SEER2 vs SEER2 (same for EER/EER2 and HSPF/HSPF2).
EER2 versus SEER2
EER2 and SEER2 both evaluate an air conditioner’s energy efficiency, but they’re concerned with two different types of temperature conditions:
- EER2 measures an air conditioner’s efficiency at the peak cooling temperature of 95°F.
- SEER2 measures an air conditioner’s efficiency throughout an entire cooling season, with temperatures ranging from 65°F to 104°F.
Right-Size Your HVAC Packaged Units. Give Cooley's Comfort A Call Today!
We carry a wide offering that includes advanced features such as 2-stage compressors, variable speed fans and quiet operation. Call us now at (480) 719-5000.
Air Conditioning Only Product Offering

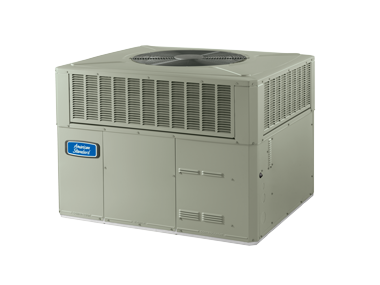

| Model Family: Silver 14 Air Conditioner Packaged Unit |
| Efficiency SEER2: Up to 14.3 SEER2 |
| Efficiency EER2: N/A |
| Energy Star Certified: N/A |
| Sound Level: Quiet Operation |
| Blower Motor: High-efficiency multi-speed ECM blower motor |
| Refrigerant Type: R-454B |
| Compressor: Duration™ high-efficiency compressor |
| Factory Warranty Parts: 10-Year Limited Warranty on Parts |
| Factory Warranty Compressor: 10-Year Limited Warranty on Compressor with registration |
| Model Family: 4TCC4 |
| Efficiency SEER2: Up to 13.4 SEER2 |
| Efficiency EER2: N/A |
| Energy Star Certified: No |
| Sound Level: Quiet operation |
| Blower Motor: variable-speed Vortica™ blower |
| Refrigerant Type: R-410A |
| Compressor: Single-stage compressor |
| Factory Warranty Parts: Residential – 10 year Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: Residential – 10 year Limited Warranty on Compressor with registration |
Gas Heating & Electric Cooling Product Offering
| Model Family: 5YCZ5-single phase |
| Efficiency SEER2: Up to 15.2 SEER2 |
| Efficiency EER2: N/A |
| Annual Fuel Utilization Efficiency: Up to 81% AFUE |
| Energy Star Certified: No |
| Sound Level: Ultra Quiet Operation |
| Refrigerant Type: R-454B |
| Gas Valve: N/A |
| Blower Motor: Variable-Speed Blower Motor with Comfort-R™ |
| Compressor: Two-stage Duration ™ compressor |
| Factory Warranty Parts: Residential – 10 year Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: Residential – 12 year Limited Warranty on Compressor with registration |
| Heat Exchanger Warranty: Residential – 20 year Limited Warranty on Compressor with registration |
| Model Family: 5YCC4-single phase |
| Efficiency SEER2: Up to14.3 SEER2 |
| Efficiency EER2: N/A |
| Annual Fuel Utilization Efficiency: Up to 81% AFUE |
| Energy Star Certified: No |
| Sound Level: Quiet operation |
| Refrigerant Type: R-454B |
| Gas Valve: Two-Stage Gas Valve |
| Blower Motor: Duration™ Compressor |
| Compressor: Variable-Speed Blower Motor with Comfort-R |
| Factory Warranty Parts: Residential – 10 year Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: Residential – 10 year Limited Warranty on Compressor with registration |
| Heat Exchanger Warranty: Residential – 20 year Limited Warranty on Heat Exchanger with registration |
| Model Family: 4YCL4 |
| Efficiency SEER2: Up to 13.4 SEER2 |
| Efficiency EER2: N/A |
| Annual Fuel Utilization Efficiency: Up to 81% AFUE |
| Energy Star Certified: No |
| Sound Level: dBA of 71-78 |
| Refrigerant Type: R410-A |
| Gas Valve: N/A |
| Blower Motor: variable-speed Vortica™ blower |
| Compressor: 2 Stage Duration™ Compressor |
| Factory Warranty Parts: 10 Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: 10 Year Limited Warranty on Compressor with registration† |
| Heat Exchanger Warranty: 20 Year Limited Warranty on Heat Exchanger^ with registration |
| Model Family: 5YCC4 |
| Efficiency SEER2: Up to 14.3 SEER2 |
| Efficiency EER2: N/A |
| Annual Fuel Utilization Efficiency: 81% AFUE |
| Energy Star Certified: No |
| Sound Level: Quiet Operation |
| Refrigerant Type: R-454B |
| Gas Valve: |
| Blower Motor: Two-stage* Variable-Speed Blower Motor with Comfort-R™ |
| Compressor: Duration™ Compressor Two-stage |
| Factory Warranty Parts: 10 year Limited Warranty on Functional Parts with Registration |
| Factory Warranty Compressor: 10 year Limited Warranty on Compressor with Registration |
| Heat Exchanger Warranty: 20 year Limited Warranty on Heat Exchanger^ with Registration |
Heat Pump Product Offering
| Model Family: 5WCZ5 |
| Efficiency SEER2: Up to 15.2 SEER2 |
| Efficiency EER2: N/A |
| Efficiency HSPF2: Up to 8.1 HSPF2 |
| Energy Star Certified: Some Models Energy Star |
| Sound Level: Ultra Quiet Operation |
| Refrigerant Type: R-454B |
| Blower Motor: Variable-Speed Blower Motor With Comfort-R™ |
| Compressor: Duration™ Compressor |
| Factory Warranty Parts: Residential – 10 year Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: Residential – 12 year Limited Warranty on Compressor with registration |
| Model Family: 5WCC4 |
| Efficiency SEER2: Up to 13.6 SEER2 |
| Efficiency EER2: N/A |
| Efficiency HSPF2: Up to 7 HSPF2 |
| Energy Star Certified: N/A |
| Sound Level: Quiet operation |
| Refrigerant Type: R-454B |
| Blower Motor: Composite Vortica™ Blower |
| Compressor: Duration™ Compressor |
| Factory Warranty Parts: Residential – 10 year Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: Residential – 10 year Limited Warranty on Compressor with registration |
| Model Family: 4WCC4 |
| Efficiency SEER2: Up to 13.4 SEER2 |
| Efficiency EER2: N/A |
| Efficiency HSPF2: Up to 7 HSPF2 |
| Energy Star Certified: N/A |
| Sound Level: Quiet |
| Refrigerant Type: R-410A |
| Blower Motor: variable-speed Vortica™ blower |
| Compressor: Single Stage |
| Factory Warranty Parts: Residential – 10 year Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: Residential – 10 year Limited Warranty on Compressor with registration |
Dual Fuel / Hybrid Heating Product Offering
| Model Family: 4DCZ5 |
| Efficiency SEER2: Up to 15.2 SEER2 |
| Efficiency EER2: N/A |
| Annual Fuel Utilization Efficiency: Up to 81% AFUE |
| Efficiency HSPF2: Up to 8.1 HSPF2 |
| Energy Star Certified: 4DCZ5024F1 model is Energy Star Certified |
| Sound Level: Quiet operation |
| Refrigerant Type: R-454B |
| Blower Motor: variable-speed Vortica™ blower |
| Compressor: Two Stage Duration™ Compressor |
| Factory Warranty Parts: Residential – 10 year Limited Warranty on Functional Parts with registration |
| Factory Warranty Compressor: Residential – 12 year Limited Warranty on Compressor with registration |
| Heat Exchanger Warranty: Residential – 20 year Limited Warranty on Heat Exchanger with registration |
